Name: Flatpack S 1U 5R 48Vdc DC Power System Eltek 19" 1U Rack Mount Rectifier Shelf
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: System Flatpack S 1U 5R 48 V DC
Price: 15000 USD
Availability: InStock

cechy Galeria opis produktu Oceny i recenzje Poprosić o wycenę

cechy

specyfikacje

Numer modelu: System Flatpack S 1U 5R 48 V DC

P/N: CTOS0501.XXX

woltaż: 185Vac/Vdc-305Vac/300Vdc

Aktualny: 21A

Częstotliwość: 45-66 Hz

Napięcie wyjściowe: 28VDC

Kontroler: 1 szt. Kontroler Smartpack S ( 242100.410)

Moduł: Flatpack2 48/1800HE ( 241122.125)

Podkreślić:

1U rack mount rectifier shelf

48Vdc DC power system

Eltek telecom power shelf

Podstawowe informacje

Nazwa handlowa: Eltek

Orzecznictwo: CE

Numer modelu: System Flatpack S 1U 5R 48 V DC

Zapłata

Szczegóły pakowania: Kartony

Czas dostawy: 1-2 tygodnie

Zasady płatności: T/T

Możliwość Supply: 500 zestawów miesięcznie

Galeria

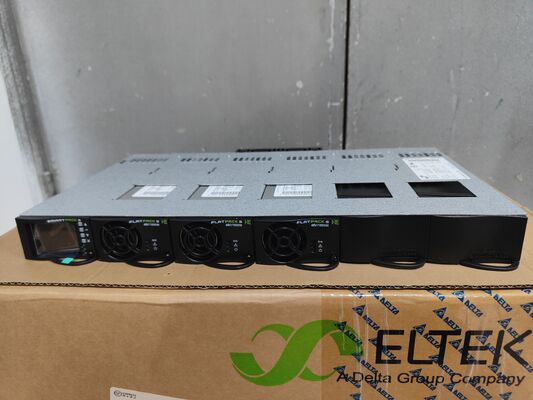

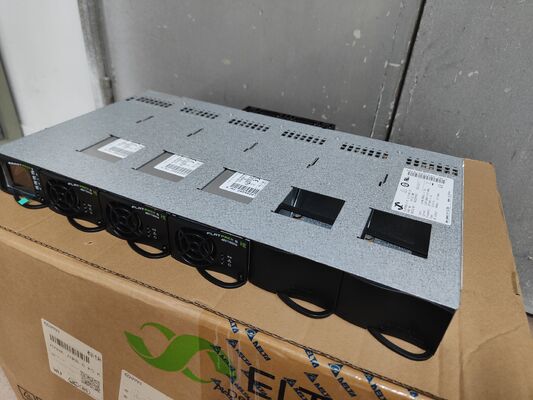

Flatpack S 1U 5R 48Vdc DC Power System Eltek 19" 1U Rack Mount Rectifier Shelf

opis produktu

Flatpack S 1U 5R 48Vdc DC Power System Eltek 19" 1U Rack Mount Rectifier Shelf

Product Overview

Upgrade your power supply with the Eltek Flatpack S 1U 5R 48Vdc System! This space-saving 1U rack power shelf delivers stable 48V DC power with max 9kW capacity, 5 rectifier slots, and included Smartpack S controller and 3x 1800HE modules. Perfect for telecom sites, data centers, and industrial environments, it offers high efficiency, easy expansion, and long-term reliability. Ready to ship and easy to install - contact us today to get your Eltek power system!

Key Features

Ultra-Compact & Shallow Design: Only 210mm depth, ideal for shallow cabinets and space-constrained installations.
High Power Density & Efficiency: Up to 95.5% efficiency, reducing energy cost and heat generation.
Flexible & Expandable: 5-module slot design, supports easy capacity expansion.
Advanced Monitoring & Control: Compatible with Smartpack S, Smartpack 2, and Compack controllers for full system supervision.
Marine & Offshore Approved: Meets rigorous offshore and marine specifications for safe, stable operation.
Comprehensive Protection: Reverse current protection, SIL3 rated output versions available, FET output protection.
Wide Application: Perfect for communication systems, GMDSS, emergency lighting, SAS systems, control & protection, and various offshore power demands.

Technical Specifications

Parameter	Specification
Product Name	Flatpack S 1U 5R 48Vdc System
Brand	Eltek
Part Number (P/N)	CTOS0501.XXX
Form Factor	19" standard rack-mount, 1U height
Rated System Voltage	48V DC
Max. System Power	9kW (with full 5 rectifier modules)
Rectifier Module Slots	5 slots
Standard Configuration	3 x Flatpack2 48/1800HE Rectifier Modules (1800W each)
Controller Included	1 x Smartpack S Controller (P/N: 242100.410)
Included Accessories	2 x Cover Panels
Typical System Efficiency	Up to 95.5%
Application Scenarios	Telecom sites, data centers, industrial control, marine & offshore power systems
