cechy Galeria opis produktu Oceny i recenzje Poprosić o wycenę

cechy

specyfikacje

Model jednostki wewnętrznej: S41

Objętość powietrza (m3/h): 12470

Wydajność chłodnicza (kW): 45,8

Liczba sprężarek (jednostka): 2

Zewnętrzne ciśnienie statyczne (PA): 30

Zasilanie (V): 380-50 Hz

Chłodziwo: R410A

Typ parownika: Miedziana rura z aluminiowymi żebrami

Filtr powietrza: Podstawowa wydajność

Typ wentylatora wewnętrznego: AC

Podkreślić:

Precision AC unit 45kW cooling capacity

Scroll compressor precision air conditioner

RS485 remote control AC unit

Podstawowe informacje

Miejsce pochodzenia: Chiny

Nazwa handlowa: Hailos

Numer modelu: S41

Zapłata

Szczegóły pakowania: drewniane kartony

Czas dostawy: 6-8 tygodni

Zasady płatności: T/T

Możliwość Supply: 500 zestawów miesięcznie

Galeria

S41 Precision AC Unit 45kW Cooling Capacity Scroll Compressor (Copeland/Panasonic) RS485 Remote Control

opis produktu

Description

Top-Supply & Rear-Return Design + Premium Components for Performance & Durability

The top-supply & rear-return airflow design ensures rational air distribution, achieving indoor temperature uniformity ≤3℃ and avoiding local hotspots. Ideal for typical installation scenarios like raised floors and dense server racks.
The evaporator adopts inner-threaded copper tubes + slotted fins, improving heat transfer efficiency by 20% compared to traditional coils. Equipped with Emerson/Sanhua thermostatic expansion valves, it precisely controls refrigerant flow to optimize cooling performance.
Core electrical components are from Schneider/Delixi, and the fan is an Avro low-noise model (operating noise ≤55dB). This ensures long-term stable operation while minimizing environmental noise interference.

Specification

No.		Name	Model/Parameter
1	Unit Performance	Indoor Unit Model	S41
2		Air Volume (m³/h)	12,470
3		Cooling Capacity (kW)	45.8
4		Number of Compressors (Unit)	2
5		Operation Mode	Constant Temperature & Humidity
6		Compressor Type	Scroll Compressor
7		External Static Pressure (Pa)	30
8		Power Supply (V)	380-50HZ
9		Refrigerant	R410a
10		Expansion Valve	Thermostatic Expansion Valve
11		Electric Heating Type	PTC
12		Electric Heating Power (kW)	18
13		Humidification Type	Wet Film
14		Humidification Capacity (kg/h)	13
15		Temperature Control Range (℃)	17-30
16		Humidity Control Range (RH%)	45-75
17		Temperature Control Accuracy (℃)	±2
18		Humidity Control Accuracy (RH%)	±5
19	Indoor Unit	Evaporator Type	Copper Tube with Aluminum Fins
20		Air Filter	Primary Efficiency
21		Indoor Fan Type	AC
22		Overall Dimensions (mm) - Width	1200
23		Overall Dimensions (mm) - Depth	750
24		Overall Dimensions (mm) - Height	2000
25		Net Weight (kg)	380
26		Gross Weight (kg)	420
27	Outdoor Unit	Outdoor Unit Model	M41
28		Overall Dimensions (mm) - Width	1400
29		Overall Dimensions (mm) - Depth	850
30		Overall Dimensions (mm) - Height	1600
31		Net Weight (kg)	220
32		Gross Weight (kg)	250
33		Connection Pipe Length (m)	15 (Max 30)
34		Liquid Pipe Diameter (mm)	12
35		Gas Pipe Diameter (mm)	22
36		Power Supply Cable	3*4²
37		Indoor-Outdoor Unit Connection Power Cable	3*2.5²
38		Humidifier Water Inlet Pipe (φmm)	20
39		Condensate Drain Pipe (φmm)	25

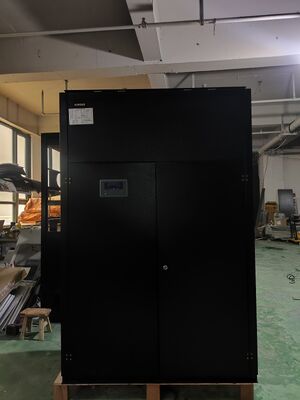

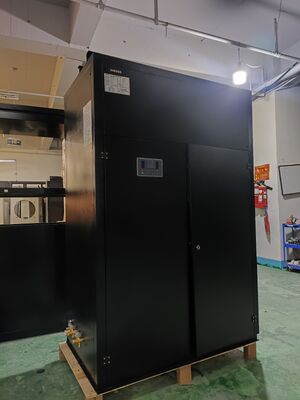

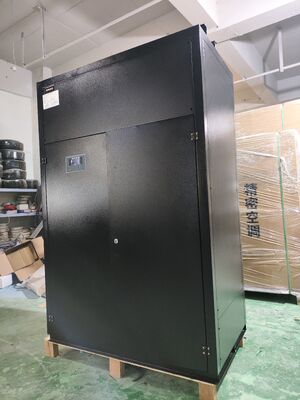

Product Display

S41 Precision AC Unit 45kW Cooling Capacity Scroll Compressor (Copeland/Panasonic) RS485 Remote Control 0
